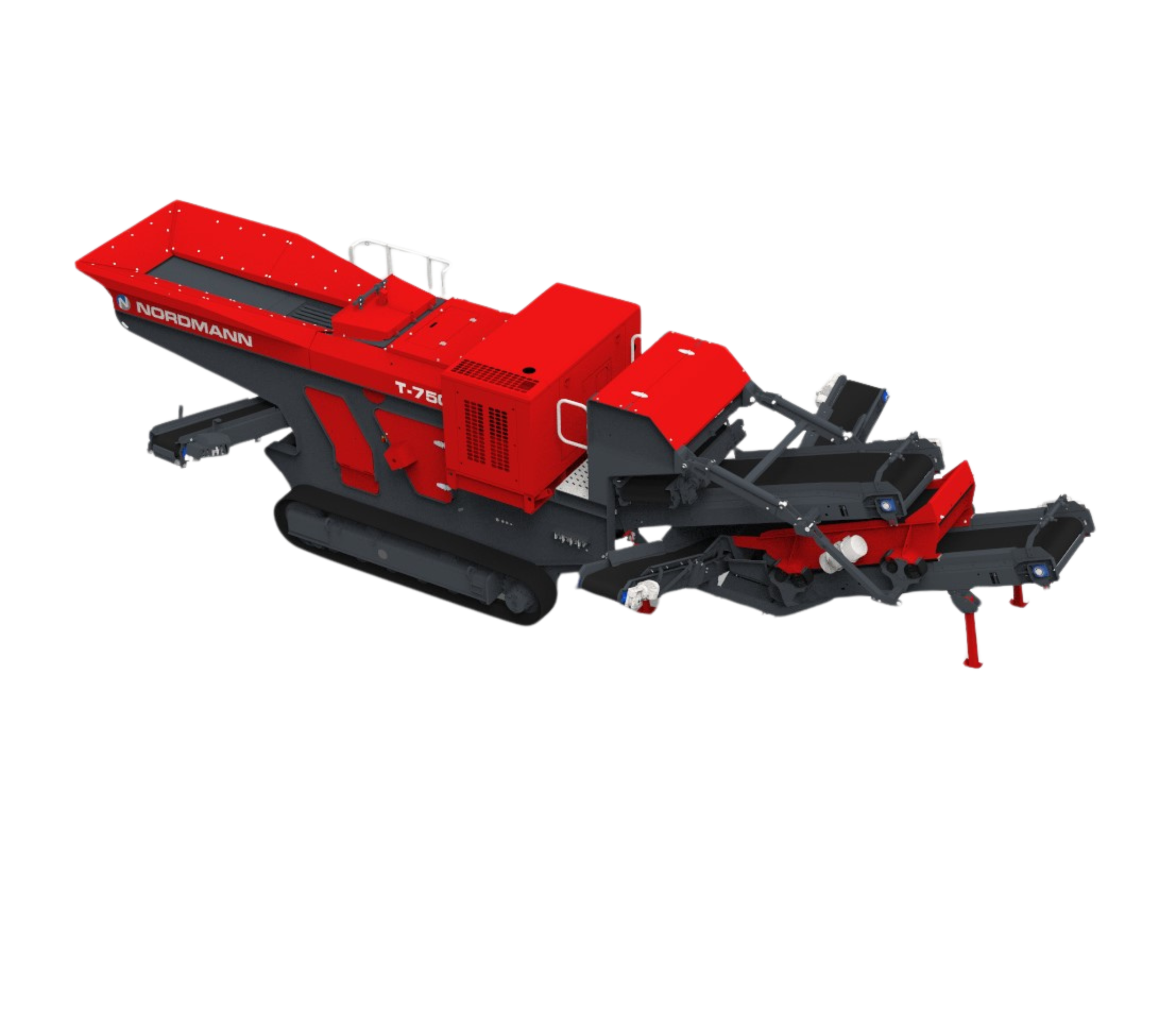

T-750RS

700 x 500 (28" x 20") inlet
6,000Kgs (13,200lbs) Chamber
CSS Range 30 - 110 (1¼" - 4½")
Drive Power 45kW (60HP)
Pulley and V Belt drive
Forward & reverse crushing
11.9m (39') Operating Length
2.85m (9' 4") Feed Height
2.6m (8' 6") Discharge Height
Rigid 3-sided lined hopper
2.0m³ (2.6yd³) capacity
Vibrating Hardox grizzly feeder
Diesel Electric Drive
75kW (100hp) Caterpillar engine
88KVA alternator
125 Amp external connection
Low Loader & 12m Flat Rack
21,000Kgs (46,200lbs)
11.9m x 2.4m x 3.1m(39' x 7'11" x 10'2")
40-100 tph (45-110 US tph)
Single & Double deck Options
2.1m x 1.0m (7' x 3'3") screen decks
3no. on-board Conveyors
Quick detachableItem description
